CX380 Excavator Piling Arm | Heavy Duty Custom Pile Driving Boom

EXCAVATOR PILE DRIVING ARM & BOOM

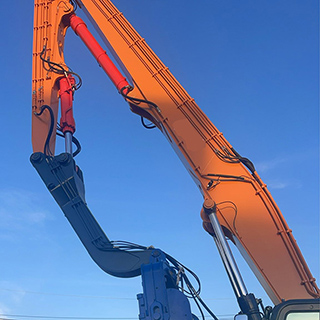

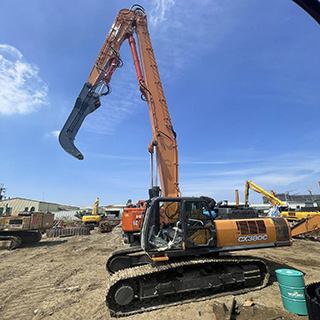

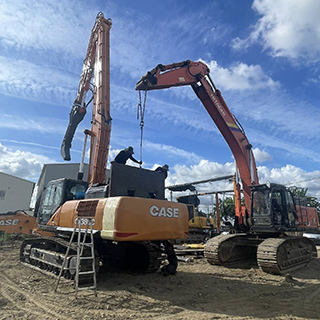

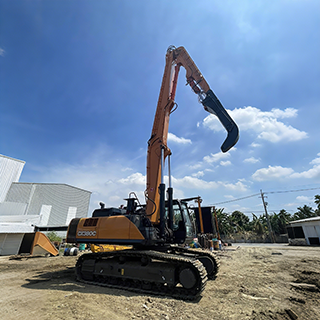

The CX380 Piling Arm is a heavy-duty excavator attachment designed for CX380 class excavators (approximately 38–40 tons), developed to support stable and efficient pile driving operations in a wide range of foundation construction projects.

This piling boom is widely used in bridge foundations, port and wharf construction, highway works, industrial facilities, and municipal infrastructure, where reliable structural strength, vibration resistance, and precise pile alignment are essential.

The arm features a reinforced box-type structural design manufactured from high-strength steel to ensure durability under continuous pile driving vibration and impact. Optimized structural geometry and balanced weight distribution help maintain excavator stability while operating vibro hammers or hydraulic pile drivers.

Each CX380 piling arm is custom-manufactured based on hammer type, pile length, and jobsite conditions, offering a practical and cost-effective piling solution for contractors and equipment operators.

 ▎KEY FEATURES

✔ Reinforced Heavy-Duty Structure

Built to withstand continuous vibration and impact loads.

✔ Stable Vertical Pile Control

Improves pile positioning accuracy and driving efficiency.

✔ Optimized Balance Design

Ensures safe and smooth operation during heavy lifting.

✔ Wide Hammer Compatibility

Supports vibro hammers and hydraulic pile drivers.

✔ Flexible Custom Configuration

Customized arm length and mounting to meet site needs.

 ▎CONFIGURATION SITUATION

 ▎STEEL CUTTING

The incision is flat to ensure the accuracy of cutting steel plates

 ▎GROOVE WELDING

Before welding, we have use big edge milling machine mill(taper process) the edge of the sheet. So the welding can go to the internal of the steel-sheet and make the structure have higher performance.

Orbital welding machines are used for welding, and manual strengthening and welding are performed at corners and reinforcements.

Our boom and arm are large-welded box structure and thick or multi-plates for high-stress areas.

Also the inside have strength plate make it more stronger.

 ▎LARGE BORING MACHINE -- BUTT BORING

The processing efficiency is higher, the precision is better, and the product quality and labor efficiency are greatly improved.

 ▎SURFACE TREATMENT OF WORKPIECE--SHOT BLAST

The small steel balls of the large shot blasting machine are used to hit the surface of the workpiece to remove the rust and small impurities on the surface of the steel plate, so that the surface of the workpiece presents the original metallic luster and increases the adhesion of the primer.

 ▎PRIMER AND PAINT TREATMENTS

Spray with the same paint as the brand excavator factory to ensure consistent color.

 ▎HIGH PRESSURE HARD PIPE & PIPELINE BENDING TREATMENT

1. Friction welded flange and oil cylinder - use machine high-speed friction welding, which has higher efficiency and avoids artificial false welding and air bubbles.

2. Automatic pipe bending machine - use numerical control to control the degree of bending of the pipeline, and automatically bend the seamless steel pipe, with higher precision.

 ▎PAINT / PACKAGING / TRANSPORTATION SERVICES

1.The color paint is consistent with the brand excavator factory (customizable color), using high-quality paint to make the product more delicate and beautiful.

2. We use stretch film to package the product. (Three-plywood wooden frame needs to be noted)

3. We have cooperated with many shipping companies in China for many years,and the transportation service and efficiency are very good. (Recommend FOB/CIF/CNF)

 ▎CERTIFICATTES & FACTORY HISTORY

We were originally affiliated to a Singaporean private factory in China. We have always only served the excavator industry and have a lot of data and manufacturing experience. Provide professional excavator accessories for dealers in many countries around the world.We insist on quality first, and deal with details so that brand dealers appoint us as partners.

（Information and photos are not displayed to protect the privacy of customers）
